STRAIGHT ECO SERIES CNC CYLINDRICAL GRINDING MACHINE
This product is known for its eco-friendly design, which provides exceptional performance and reliability. The Straight Eco Series CNC Machine is designed for efficient and precise grinding, making it perfect for mass and batch production of components. We prioritize quality and innovation. The straight Eco Series CNC cylindrical grinding machine caters to various industries and applications.

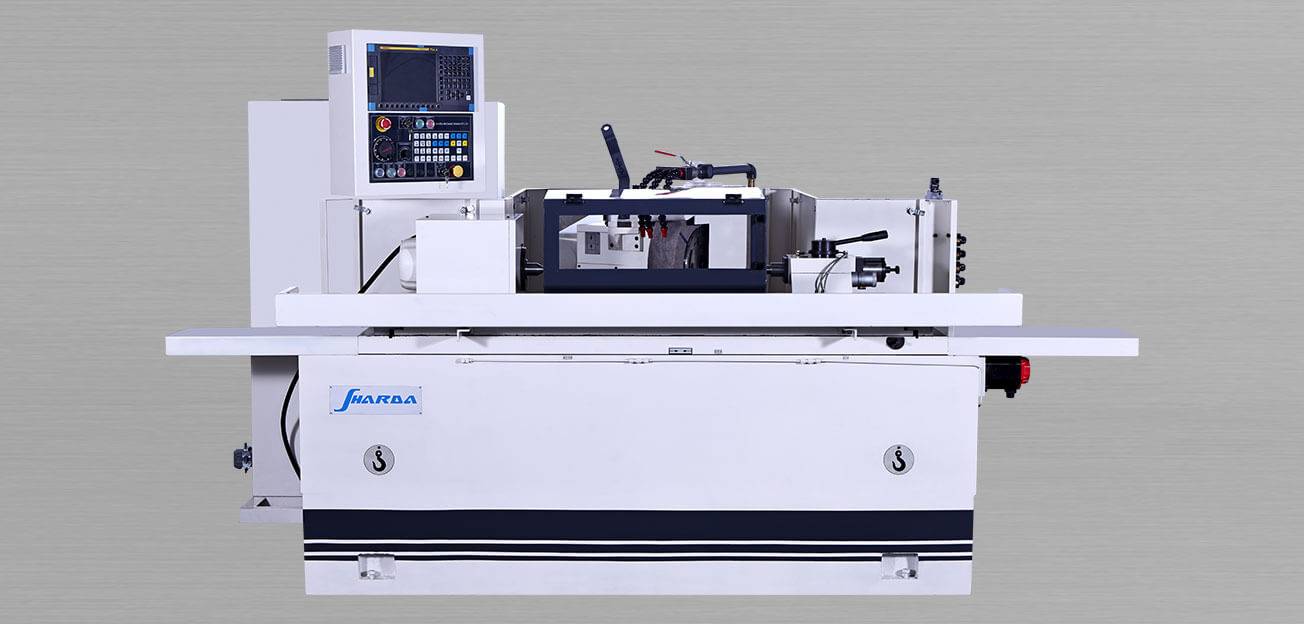

Straight Eco Series CNC Cylindrical Grinding Machine
(Straight / Angular )
Features of the Straight Eco Series CNC Machine
There are several advanced features designed to improve efficiency and precision. Straight Eco Series CNC Machine Exporter provides a cartridge-type grinding wheel head spindle with high-precision antifriction bearings. It operates at a cutting speed of 45 m/sec. The machine also supports multi-plunge and traverse grinding, allowing multiple steps to be completed in the same setup without unloading.
High Precision Grinding
The grinding machine is equipped with a CNC control system for two axes. ensuring accurate and consistent performance. CNC Cylinder Grinding Machine Supplier also include high-precision antifriction bearings in the spindle head. This enhancea accuracy as well as longevity.
Automation and Optional Accessories
For enhanced productivity, the straight Eco Series CNC machine can be equipped with robotic pick and place loading systems or auto-loader gantry systems. Additionally, various optional accessories such as in-process gauges, flagging devices, automatic wheel balancing systems, gap & crash control systems, and linear scales are available.
Extra Details
Our Eco Series CNC cylindrical grinding machine is designed to handle complex grinding operations with ease. Upgrading the CNC control system can unlock advanced grinding cycles and functionalities, further enhancing precision and reducing errors.
| General Specifications: | ||
| CNC System: | FANUC / SIEMENS | |
| Centre Height | mm | 150 / 175 / 200 |
| WHEEL SLIDE (X-AXIS) | ||
| Rapid Feed Rate | m/min | 7 |
| Minimum Increment / Pulse | mm | 0.001 |
| TABLE (Z-AXIS) | ||
| Rapid Feed Rate | m/min | 7 |
| Minimum Increment / Pulse | mm | 0.001 |
| WHEEL HEAD | ||
| Grinding wheel Diameter | mm | 400 / 500 |
| Grinding Wheel Width | mm | 50 / 80 |
| Surface Speed | m/s | 30 / 45 / 60 |
| Motor Power | kW | 3.7 / 5.5 |
| WORK HEAD | ||
| Spindle Nose Taper | MT | 4 / 5 |
| Spindle Speed | rpm | 50 - 500 |
| TAIL STOCK | ||
| Spindle Nose Taper | MT | 4 / 5 |
| Quill Travel | mm | 25 / 40 |
| Taper Correction (Optional) | mm | ± 0.040 |
The machine stands out for its precision, versatility, and eco-friendly design. It is the ideal choice for industries requiring robust grinding solutions for medium to large workpieces. As a trusted straight Eco Series CNC machine manufacturer, we are committed to providing machines that meet your production needs with unmatched efficiency and quality. Explore the capabilities of our Straight Eco Series CNC Machine and elevate your manufacturing capabilities with our state-of-the-art grinding technology.
