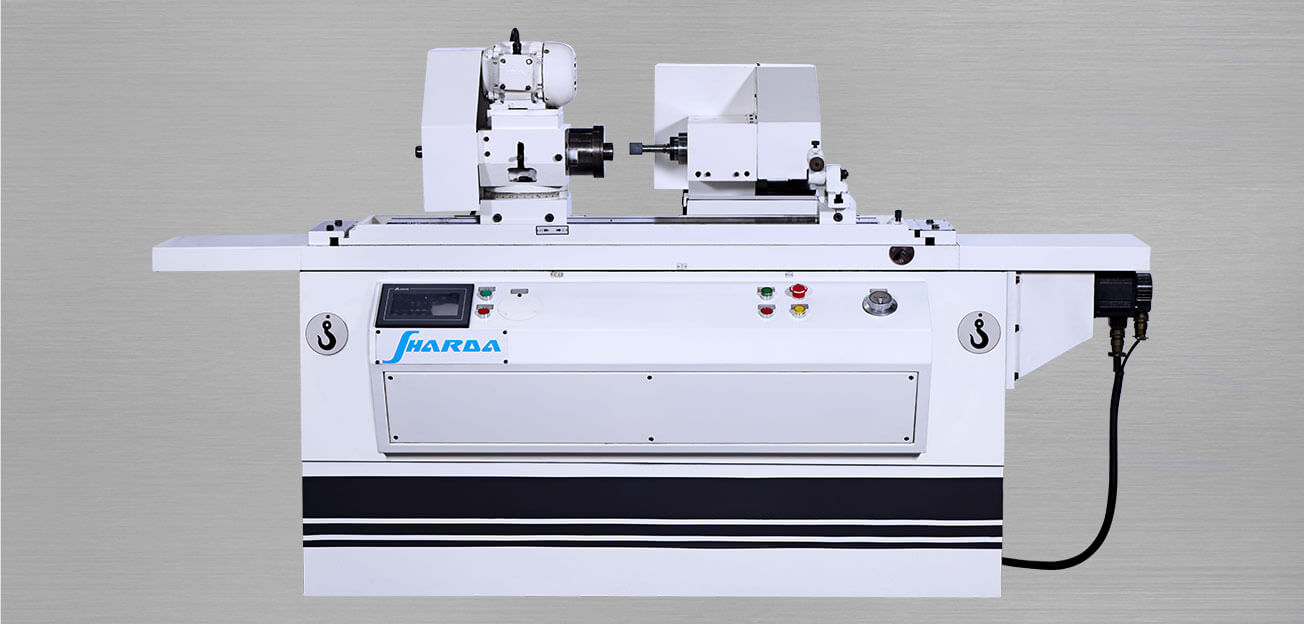

2 AXIS PLC INTERNAL CNC CYLINDRICAL GRINDING MACHINE
The PLC based internal cylindrical grinder excels in high-precision internal grinding tasks. Ideal for both mass and batch production, this machine features advanced PLC control for two axes, enabling precise plunge and traverse grinding cycles. Its automated wheel compensation after dressing ensures consistent performance and superior finish quality.
2 Axis PLC Internal CNC Cylindrical Grinding Machine
Download BrochureFeatures of PLC Internal CNC Cylindrical Grinding Machine
With PLC control of two axes, the 2 Axis PLC External CNC Cylindrical Grinding Machine Manufacturers ensures accurate and reliable grinding operations.
Allows for efficient grinding of multiple steps without unloading.
Auto Wheel CompensationAutomatically adjust the grinding wheel after dressing, ensuring consistent accuracy.
Optional AccessoriesIn-Process Gauge, that provides real-time measurement and feedback to enhance grinding precision.
Extra Details of 2 Axis PLC External CNC Cylindrical Grinding Machine
The 2 Axis PLC Internal CNC Cylindrical Grinding Machine is also distinguished for its high precision and performance in internal grinding operations. The cylinder is in between two centers wherein the cylinder and the grinding wheel rotate in opposite directions. This setup of a PLC Internal Cylindrical Grinding Machine ensures high-precision grinding and a superb final finish.
Working Table:- The working table, mounted on guideways, reciprocates back and forth, controlled either by a table traverse hand wheel or a power source. Trip dogs on the table manage the reciprocation, providing controlled and accurate grinding operations.
Headstock:- The headstock, located at the left end of the table, houses the motor that drives the workpiece. It supports the workpiece through a center, with the job performed by a carrier or dog. To facilitate accurate rotation of the workpiece when grinding, the 2 Axis PLC Internal CNC Cylindrical Grinding Machine is designed.
Advantages of Selecting a Good PLC Internal Cylindrical Grinding Machine Supplier
It is advisable to contract a competent PLC Internal Cylindrical Grinding Machine Supplier as this guarantees quality grinding machinery that is well constructed. Most suppliers offer full-package services, including installation and maintenance services that guarantee the ideal use of the grinding machine.
| GERNAL | ||
| PLC System | DELTA / INNOVANCE | |
| Centre Height | mm | 150 |
| Admit Between Centres | mm | 500 / 750 |
| WHEEL SLIDE (X-AXIS) | ||
| Rapid Feed Rate | m/min | 5 |
| Minimum Increment / Pulse | mm | 0.001 |
| TABLE (Z-AXIS) | ||
| Rapid Feed Rate | m/min | 5 |
| Minimum Increment / Pulse | mm | 0.001 |
| INTERNAL GRINDING HEAD | ||
| Spindle Speed (Belt Driven) | rpm | 18000 |
| Motor Power | hp | 3 |
| WORK HEAD | ||
| Spindle Nose Taper | MT | 5 |
| Spindle Speed | rpm | 50 – 500 |
The 2 Axis PLC Internal CNC Cylindrical Grinding Machine is specifically useful for those manufacturers who are looking for greater levels of precision and productivity when it comes to internal grinding. Its advanced features, including PLC control of two axes, plunge and traverse grinding cycles, and auto wheel compensation, make it a top choice for mass and batch production environments.
To obtain advanced technologies and reliable assistance, it is critical to choose a credible PLC Internal Cylindrical Grinding Machine Manufacturer. For any company setting up or upgrading its manufacturing facilities, Acquiring a reputable CNC cylindrical grinding machine manufacturer is one of the best ways to improve the speed and accuracy of your production line. Taking into consideration the high demand for precise components in today’s market, 2 Axis PLC Internal CNC Machine has become a vital component in modern industries.
