CNC EXTERNAL CYLINDRICAL GRINDING MACHINE ANGULAR(MD)

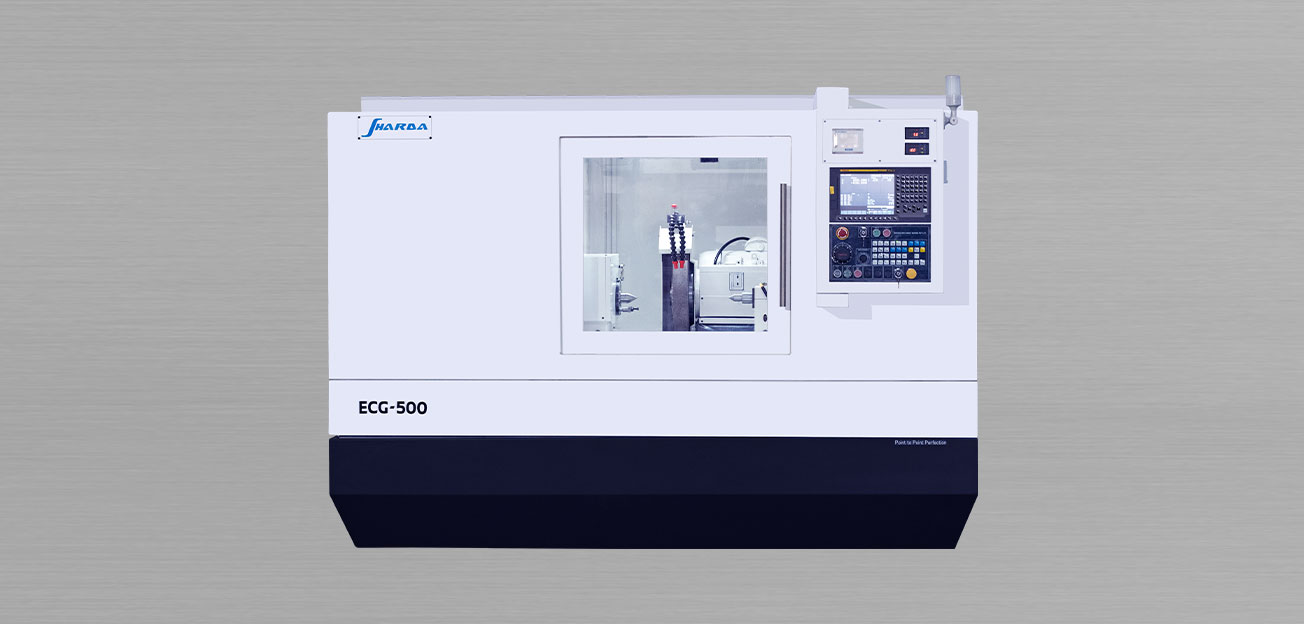

ECG (CNC External Grinding Machine)
ECG Series (Straight / Angular )
ECG Straight wheel head for mass and batch production of components
Multi plunge &traverse grinding (multiple steps) can be dine in same set-up without unloading
CNC control of 2 axes
Cartridge type grinding wheel head spindle with high precision antifriction bearings with 45 m/sec. cutting speed
CNC controlled constant surface speed (CSS) of grinding wheel
| GERNAL | ||
| CNC System | FANUC / SIEMENS | |
| Centre Height | mm | 150 / 175 / 200 |
| Admit Between Centres | mm | 300 / 500 / 800 / 1000 / 1250 / 1500 |
| WHEEL SLIDE (X-AXIS) | ||
| Rapid Feed Rate | m/min | 7 |
| Minimum Increment / Pulse | mm | 0.001 |
| TABLE (Z-AXIS) | ||
| Rapid Feed Rate | m/min | 7 |
| Minimum Increment / Pulse | mm | 0.001 |
| WHEEL HEAD | ||
| Grinding wheel Diameter | mm | 400 / 500 |
| Grinding Wheel Width | mm | 50 / 80 |
| Surface Speed | m/s | 30 / 45 / 60 |
| Motor Power | kW | 3.7 / 5.5 |
| WORK HEAD | ||
| Spindle Nose Taper | MT | 4 / 5 |
| Spindle Speed | rpm | 50 – 500 |
| TAIL STOCK | ||
| Spindle Nose Taper | MT | 4 / 5 |
| Quill Travel | mm | 25 / 40 |
| Taper Correction (Optional) | mm | ± 0.040 |
OPTIONAL ACCESSORIES :
In-Process Gauge, Flagging Device, Automatic Wheel Balancing System, Gap & Crash Control System, Linear scale.
AUTOMATION :
Robotic pick and place loading system or Auto Loader Gantry
