UNIVERSAL HYDRAULIC CYLINDRICAL GRINDING MACHINE
Universal Hydraulic CNC Cylindrical Grinding Machine

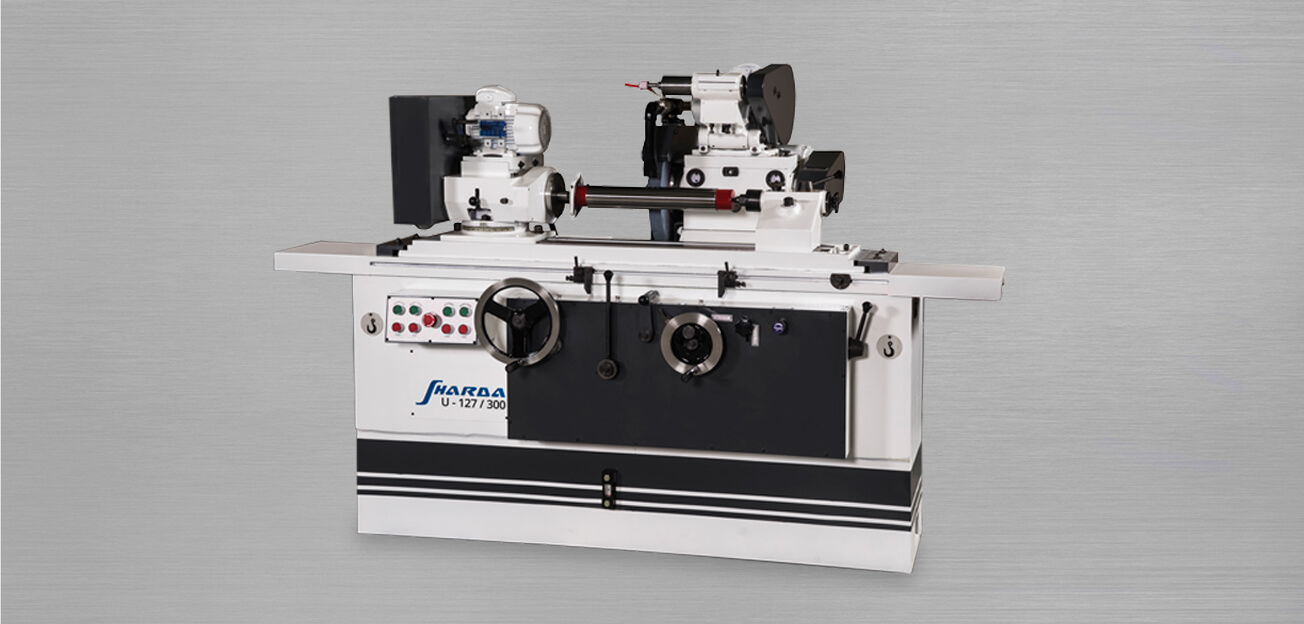

Download Brochure"SHARDA" cylindrical grinding machine has been designed to deliver high accuracy, productivity and reliability in performance
This machines are suitable for tool room and production application
Longitudinal slide and In feed cross slide with "TURCITE - B" coated
Automatic continuous centralized lubrication system
| GERNAL | ||
| Centre Height | mm | 127 / 150 / 175 |
| Admit Between Centres | mm | 300 / 500 / 750 / 1000 / 1250 / 1500 / 2000 |
| WHEEL HEAD | ||
| Spindle Bearing | White metal brass type | |
| Grinding wheel size | mm | 350 x 40 / 400 x 40 |
| Wheel Head Rapid Approach | mm | 40 |
| Motor Power | hp | 5 |
| WORK HEAD | ||
| Spindle Nose Taper | MT | 4 |
| Spindle Speed | rpm | 50 - 500 (VFD) |
| TAIL STOCK | ||
| Spindle Nose Taper | MT | 3 |
| Quill Travel | mm | 25 |
OPTIONAL ACCESSORIES :
Internal Grinding Attachment, Swing arm mechanical Gauge, DRO,
