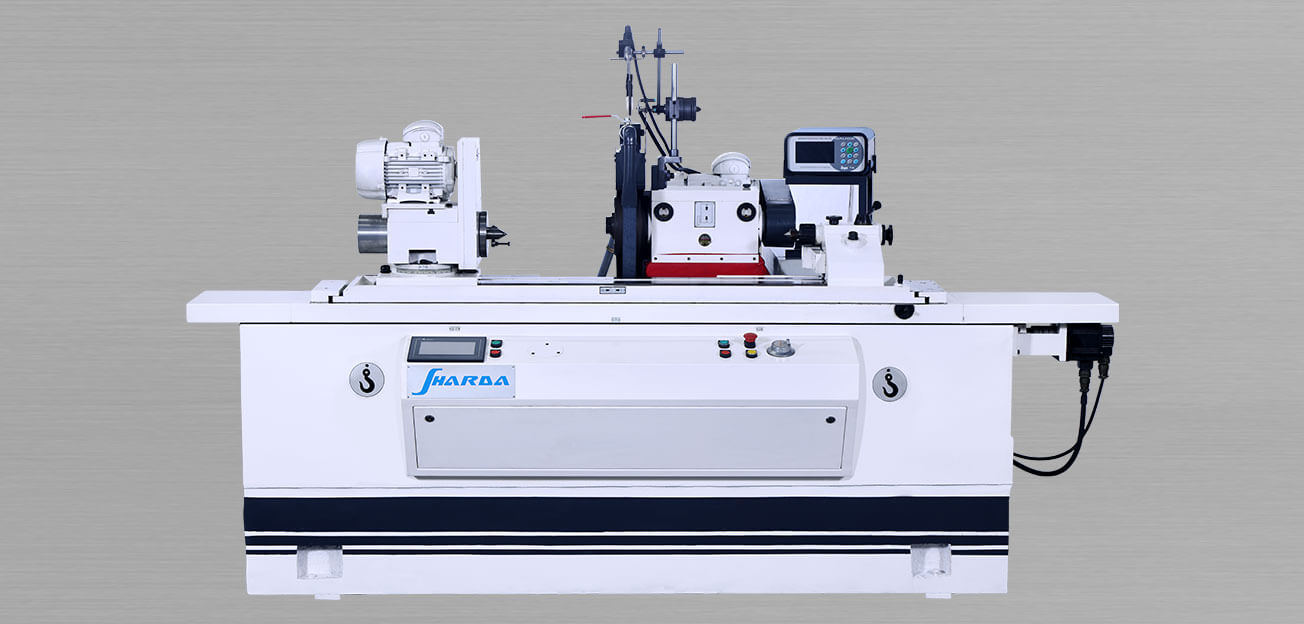

PLC EXTERNAL CYLINDRICAL GRINDING MACHINE (2 - AXIS)
This machines are used for mass and batch production of components
PLC control of 2 axes
Multi plunge & traverse grinding (multiple steps) can be grind in same set-up without unloading
Auto wheel compensation after dressing
| GERNAL | ||
| PLC System | DELTA / INNOVANCE | |
| Centre Height | mm | 127 / 150 / 175 |
| Admit Between Centres | mm | 300 / 500 / 750 / 1000 / 1250 |
| WHEEL SLIDE (X-AXIS) | ||
| Rapid Feed Rate | m/min | 5 |
| Minimum Increment / Pulse | mm | 0.001 |
| TABLE (Z-AXIS) | ||
| Rapid Feed Rate | m/min | 5 |
| Minimum Increment / Pulse | mm | 0.001 |
| WHEEL HEAD | ||
| Grinding wheel Diameter | mm | 350 / 400 |
| Grinding Wheel Width | mm | 40 |
| Surface Speed | m/s | 30 |
| Motor Power | hp | 5 |
| WORK HEAD | ||
| Spindle Nose Taper | MT | 4 |
| Spindle Speed | rpm | 50 – 500 |
| TAIL STOCK | ||
| Spindle Nose Taper | MT | 3 |
| Quill Travel | mm | 25 |
OPTIONAL ACCESSORIES :
In-Process Gauge,
