ANGULAR HEAVY DUTY CNC CYLINDRICAL GRINDING MACHINE

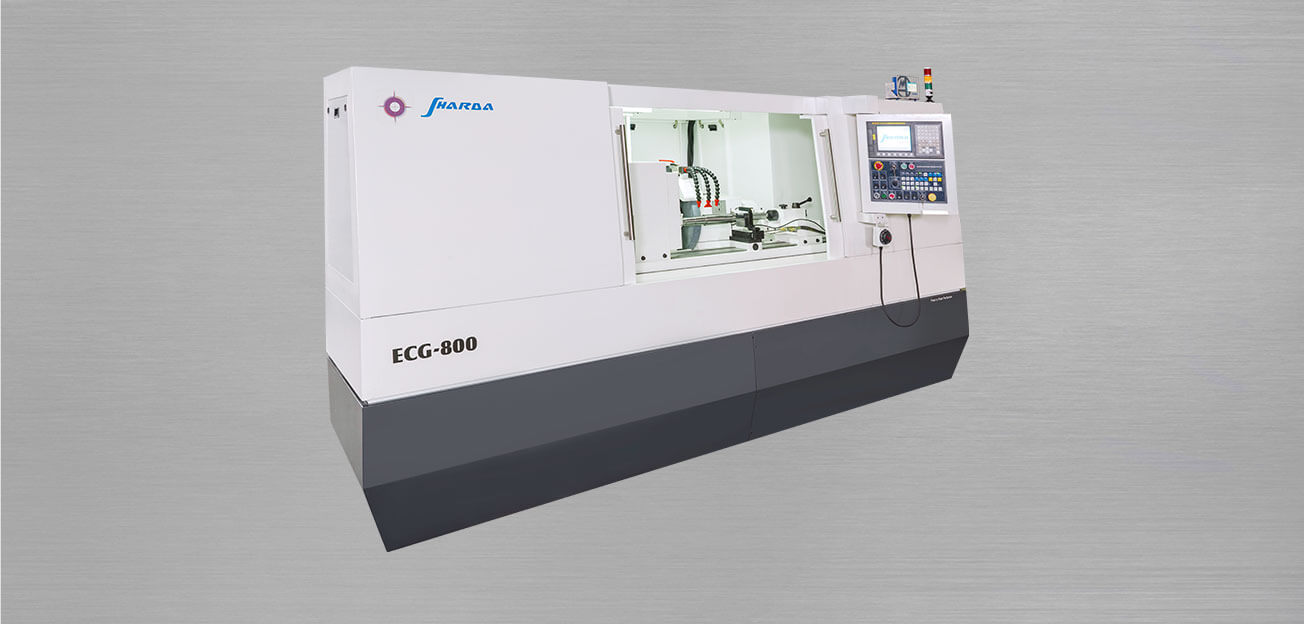

Angular Heavy Duty CNC Cylindrical Grinding Machine
ECG Series (Straight / Angular )
Heavy duty CNC Cylindrical grinders are designed for grinding medium or large size of work piece in high production volumes.
Components with large grinding areas can be ground with wide wheels or multiple wheels in single plunge operation.
Heavy duty Cartridge type grinding wheel head spindle with high precision antifriction bearings with 45 m/sec. cutting speed.
CNC controlled constant surface speed (CSS) of grinding wheel
| GERNAL | ||
| CNC System | FANUC / SIEMENS | |
| Centre Height | mm | 150 / 175 / 200 |
| Admit Between Centres | mm | 500 / 800 / 1000 / 1250 |
| WHEEL SLIDE (X-AXIS) | ||
| Rapid Feed Rate | m/min | 7 |
| Minimum Increment / Pulse | mm | 0.001 |
| TABLE (Z-AXIS) | ||
| Rapid Feed Rate | m/min | 7 |
| Minimum Increment / Pulse | mm | 0.001 |
| WHEEL HEAD | ||
| Grinding wheel Diameter | mm | 600 |
| Grinding Wheel Width | mm | 80 / 100 / 120 |
| Surface Speed | m/s | 30 / 45 |
| Motor Power | kW | 10 / 15 |
| WORK HEAD | ||
| Spindle Nose Taper | MT | 5 |
| Spindle Speed | rpm | 50 – 500 |
| TAIL STOCK | ||
| Spindle Nose Taper | MT | 4 / 5 |
| Quill Travel | mm | 40 / 60 |
| Taper Correction (Optional) | mm | ± 0.040 |
OPTIONAL ACCESSORIES :
In-Process Gauge, Flagging Device, Automatic Wheel Balancing System, Gap & Crash Control System
AUTOMATION :
Robotic pick and place loading system or Auto Loader Gantry
